HM1525 Handler-Dedicated Manipulator

The space-saving design of the Reid-Ashman HM1525 Handler-Dedicated manipulator affords the operator ease of use while occupying a minimal test cell footprint.

Some of the features and benefits of the HM1525 manipulator are:
  • Easy initial set-up
  • Repeatable docking
  • Designed for use with a variety of handlers
  • Patented vertical direct-drive system†
Standard Motions:
  • Vertical*
  • Side-to-Side
  • Twist
  • In-Out
  • Tumble
  • Theta
*Motorized motions

Weight Capacity:
HM1525 750 lbs (340 kg)

†Reid-Ashman's Patented Vertical Direct-Drive system (Patent #6,766,996) eliminates the need for removable counterweights. Because of this, these manipulators utilize a smaller column, weigh less, and maintain center of gravity integrity better than traditional counterweighted manipulators with similar weight carrying capacities.

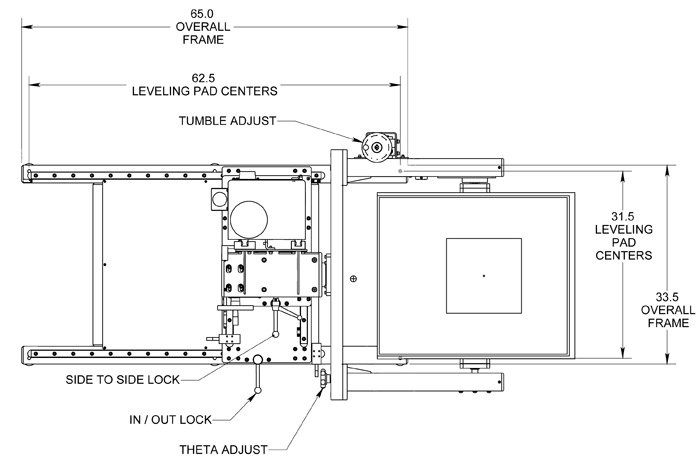

Footprint:
