OM1771 Universal Manipulator
The innovative design of the Reid-Ashman OM1771 Universal manipulator provides a high level of performance while requiring minimal effort from the operator.
OM1771 manipulators are specifically designed to provide convenient and efficient docking between the Nextest SV Magnum Dual test system and a variety of handlers and probers.
Some of the features and benefits of the OM1771 manipulator are:- Easy initial set-up
- Repeatable docking
- Designed for use with a variety of handlers and probers
- Touchscreen controller
- Patented vertical direct-drive system†
- Vertical*
- Twist*
- In-Out
- Side-to-Side
- Tumble*
- Swing
Weight Capacity:
OM1771 750 lbs - 1050 lbs (340 kg - 476 kg)
†Reid-Ashman's Patented Vertical Direct-Drive system (Patent #6,766,996) eliminates the need for removable counterweights. Because of this, these manipulators utilize a smaller column, weigh less, and maintain center of gravity integrity better than traditional counterweighted manipulators with similar weight carrying capacities.

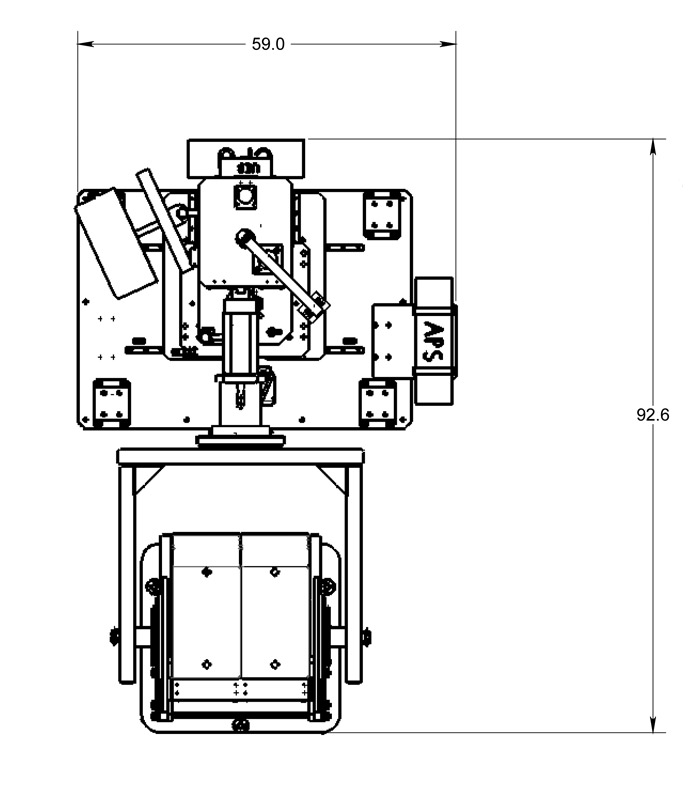

Footprint:
