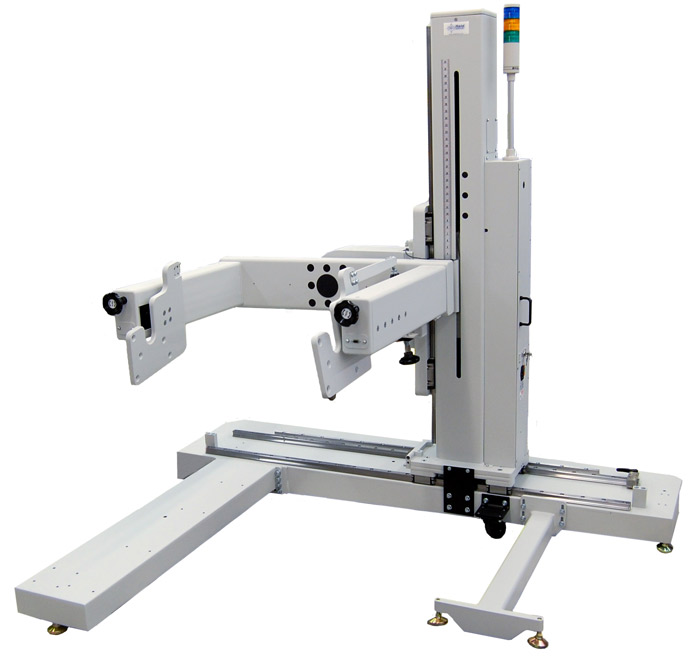

PDT1771 Prober-Dedicated Manipulator
The innovative design of the Reid-Ashman PDT1771 Prober-Dedicated manipulator affords the operator ease of use while occupying a minimal test cell footprint.
PDT1771 manipulators are specifically designed to provide convenient and efficient docking between the Nextest Maverick 4-Chassis SV768 test heads and a variety of probers.
Some of the features and benefits of the PDT1771 manipulator are:
- Easy initial set-up
- Repeatable docking
- Touchscreen controller for all motorized motions
- Designed for use with a variety of probers
- Patented vertical direct-drive system†
- Vertical*
- Side-to-Side*
- Twist*
- In-Out
- Tumble
- Theta
Weight Capacity:
PDT1771 750 lbs - 1100 lbs (340 kg - 499kg)
†Reid-Ashman's Patented Vertical Direct-Drive system (Patent #6,766,996) eliminates the need for removable counterweights. Because of this, these manipulators utilize a smaller column, weigh less, and maintain center of gravity integrity better than traditional counterweighted manipulators with similar weight carrying capacities.

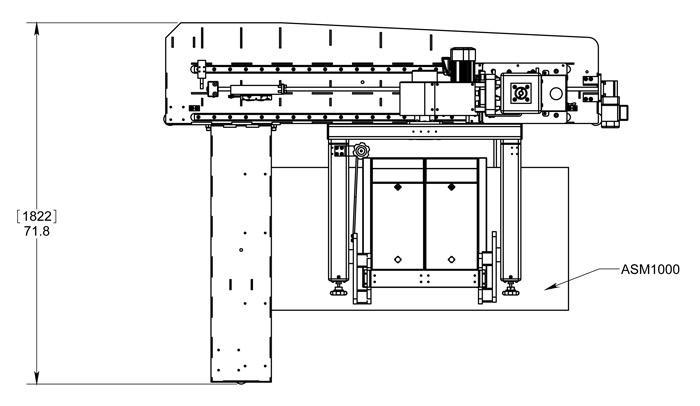

Footprint:
