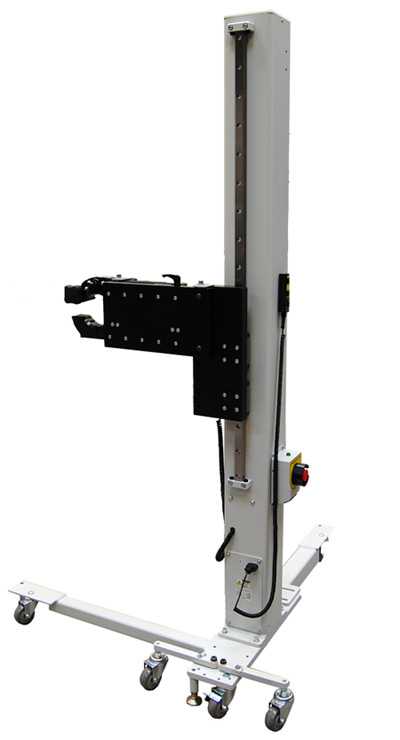

PS1030 Prober-Dedicated Manipulator
The innovative design of the Reid-Ashman PS1030 Prober-Dedicated manipulator affords the operator ease of use while occupying a minimal test cell footprint.
PS1030 manipulators are specifically designed to provide convenient and efficient docking between the Texas Instruments' VLCT test system and a variety of wafer probers.
Some of the features and benefits of the PS1030 manipulator are:
- Small footprint
- Easy initial set-up
- Repeatable docking
- Designed for use with a variety of probers
- Patented vertical direct-drive system†
- Vertical*
- Side-to-Side
- Twist
- Swing
- Theta
Weight Capacity:
PS1030 300 lbs (136kg)
†Reid-Ashman's Patented Vertical Direct-Drive system (Patent #6,766,996) eliminates the need for removable counterweights. Because of this, these manipulators utilize a smaller column, weigh less, and maintain center of gravity integrity better than traditional counterweighted manipulators with similar weight carrying capacities.

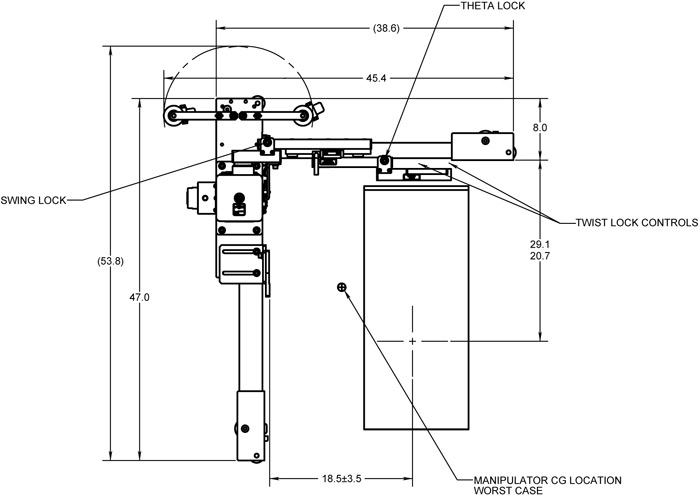

Footprint:
